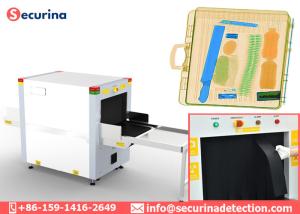

Tunnel Size 60x40cm Airport Baggage Scanner Machine With Color Scanning Image

Tunnel Size 60x40cm Airport Baggage Scanner Machine With Color Scanning Image

Airport baggage scanner machine is a kind of radioactivity detector, which is mainly used to detect whether dangerous goods are hidden in luggage and parcels. It is mainly used in places with strict security inspections such as stations, public transportation places, courts and prisons.

SA6040 airport baggage scanner machine has 13 kinds of image processing functions:

1. 12bit depth display-high resolution 17 inch LCD
2. Color image display---according to the material material, 24-bit true color display
3. Edge enhancement---the object outline edge is clearer
4. Super image enhancement---image details are clearer
5. High penetration display---improve the contrast of bright areas in the image to make the easy penetration areas clearer.
6. Low-penetration display---improve the contrast of dark areas in the image to make difficult-to-penetrate areas clearer.
7. Magnifying glass-partial zoom function, real-time dynamic zoom
8. Brighten/Darken---Increase the brightness of the image/decrease the brightness of the darkened image
9. Image pull back/pull forward---display the first 30 images, and any image processing can be performed on the image 10. Image restoration---image display returns to its original state
11. Image storage---save any image in real time, and can perform any image processing, and save it continuously.
12. Multi-energy color---organic matter is displayed as orange, inorganic matter is displayed as blue, and the mixture is displayed as green
13. High-energy/low-energy two-energy switching display-auxiliary detection of drug and explosives. It is more auxiliary to detect some typical drug and explosives and other dangerous items.

Airport Baggage Scanner Operating Environment​:

Operating temperature: 0℃-40℃
Operating Humidity: 10%-95% (non-condensing)
Storage Temperature: -20℃to 60℃
Storage Humidity: 5%-95% (non-condensing)
Operation Power: 220VAC (±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.0KW (max), 0.7KW (working)

Airport Baggage Scanner Technical Parameter:

Airport Baggage Scanner other Specifications:

Noise: <58db

Anode Voltage: 140kv

Anode power: 0.3mA

Generate angle: 80 degree upward

Generate direct: from bottom to top

Cooling / Duty Cycle: Oil Cooling /100%

Extension Rollers: customize size length

Support card reader operator access

CD DVR/RW unit: Optional

Console optional: 17 inch one or two monitor
